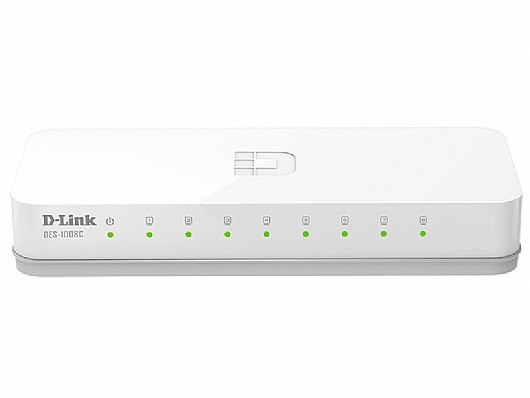

D-Link DES-1008c 8 Port Desktop Switch

Device Interfaces

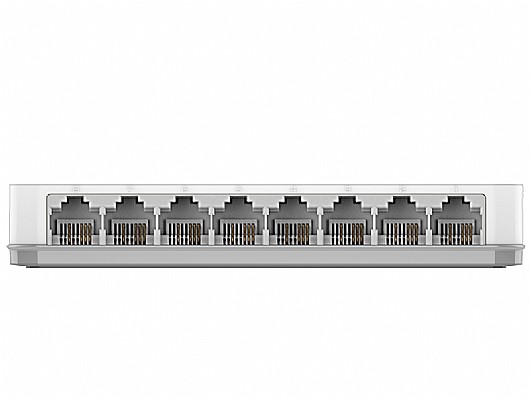

• Eight 10/100 Mbps LAN ports

Standards
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity
• 1.6 Gbps switching fabric

Advanced Features
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 2,048 byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Store and-Forward switching method
• Auto-negotiation for each port
• EEE compliant IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3az EEE
• IEEE 802.3x flow control

Data Transfer Rates
• Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
• Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Transmission Method
• Store-and-forward

MAC Address Table Size
• 2,000

Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

RAM Buffer
• 96 KB per device

LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power

Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports

Dimensions
• 131 x 54 x 21 mm

Weight
• 74.8 grams

Power
• DC 5 V / 0.55 A

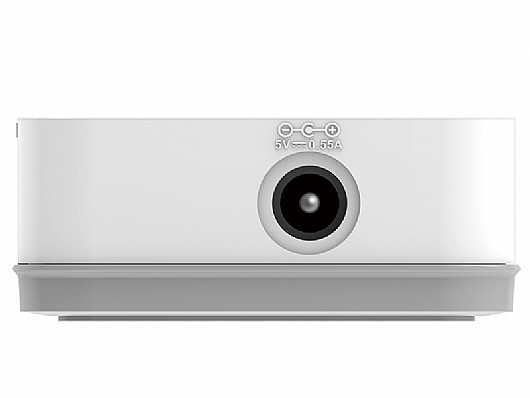

• DC jack: Located on side

Power Consumption
• Power On (Standby): 0.55 watts
• Maximum: 1.55 watts

Temperature
• Operating: 0° to 40°C
• Storage: -40° to 70°C

Humidity
• Operating: 10% to 90% (Non-condensing)
• Storage: 5% to 95% (Non-condensing)

MTBF
• 1 579 582 hours

Maximum Heat Dissipation
• 0.691 BTU/h

Certifications
• CE Class B
• CE (LVD 2006/95/EC)
