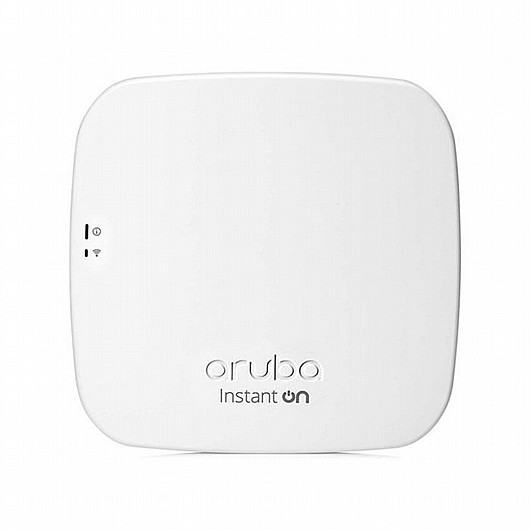

‏נקודת גישה AP12 R2X03A HP

CertificationsUL 2043 plenum rating EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments) Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)

Input VoltagePower over Ethernet (POE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately

Wi-Fi AntennaIntegrated downtilt omni-directional antennas with maximum individual antenna gain of 3.9dBi in 2.4GHz and 5.4dBi in 5GHz

ConnectivityIEEE 802.11ac, 802.11n

External I/O Ports(1) uplink Gigabit Ethernet port, with POE-in support (802.3af)

MountingThe access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling).

Radio CoverageDual Radio for simultaneous dual-band operation 5 GHz 802.11ac 3x3 MIMO for up to 1,300 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Warranty Standard StatementAruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.

Product Differentiator (long)Aruba Instant On AP12 Indoor Access Points offer a reliable, affordable, and business-grade Wave 2 802.11ac Wi-Fi experience for low- to medium-density small business environments like design firms, cafés, or restaurants. These cost-effective access points have a peak data rate of 1.6 Gbps and scale up to 25 access points without additional cost and complexity. Regulatory domain of Israel.

Weight (imperial)1.1 lb

Weight (metric)483 g

Product Dimensions (imperial)1.3 x 6.2 x 6.2 in

Product Dimensions (metric)34 x 157 x 157 mm
