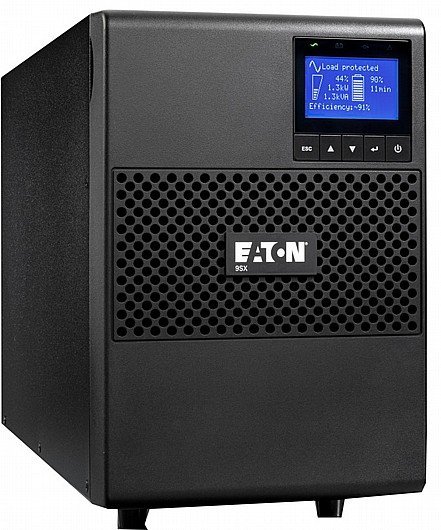

מחיר ₪ 2,948 ILS 8/7/2027 Out of stock https://www.pccenter.co.il/product/אל-פסק-eaton-9sx2000i-2000va Eaton 1030096 1030096
| General | |||||||||||
| Topology | On-line double conversion with PFC (Power Factor Correction) system | ||||||||||
| Configuration | Tower | ||||||||||
| Part Number | 9SX2000I | ||||||||||
| Rating (VA/Watts) | 2000/1800 | ||||||||||
| Dimensions (H x W x D, mm) | 346 x 214 x 412 | ||||||||||
| Warranty | 2 years warranty | ||||||||||
| Electrical Input | |||||||||||
| Connection |
(1) IEC-320-C14
 |
||||||||||
| Input Voltage Range | 200-276V without derating (up to 140-276V with derating) | ||||||||||
| Nominal Voltage | 200/208/220/230/240V | ||||||||||
| Frequency | 50/60 Hz autoselection | ||||||||||
| Frequency Range | 40-70 Hz | ||||||||||
| Electrical Output | |||||||||||
| Outlets |
(8) IEC-320-C13
 |
||||||||||
| Output Frequency | 50/60 Hz autoselect, frequency converter as standard | ||||||||||
| Battery | |||||||||||
|
Runtime
(Minutes) 250
500
750
1000
1250
1500
1750
0
250
500
750
1000
1250
1500
1750
2000
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Actual runtime may vary from +/- 15% around these typical values
Show: Hover over graph for detailed runtime values
|
|||||||||||
| Battery Management | ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. | ||||||||||
| Extended Battery Capability | EBM | ||||||||||
| Communications | |||||||||||
| User Interface | Multilingual graphical LCD display | ||||||||||
| Communication Ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay | ||||||||||
| Communication Slot | 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards | ||||||||||
| Environmental & Standards | |||||||||||
| Audible Noise | <45dB | ||||||||||
| Operating Temperature | 0 to 40°C continuous | ||||||||||
| Safety markings | IEC/EN 62040-1, UL 1778, CSA 22.2 | ||||||||||
| EMC Markings | IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B | ||||||||||
| Approvals | CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC | ||||||||||
