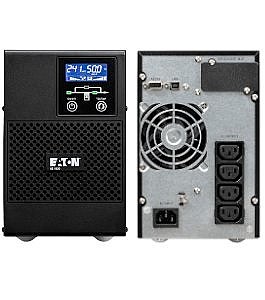

מחיר ₪ 1,418 ILS 12/7/2027 In stock https://www.pccenter.co.il/product/אל-פסק-eaton-9e-1000va-9e1000i Eaton 1033490 1033490
| General | |
| Topology | Online double conversion |
| Configuration | Tower |
| Part Number | 9E1000I |
| Rating (VA/Watts) | 1000/800 |
| Dimensions (H x W x D, mm) | 356 x 228 x 144 |
| Weight (kg) | 9.5 |
| Warranty | 2 years |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
 |
| Input Voltage Range | 176-300V without derating (up to 100-300V with derating) |
| Nominal Voltage | 208/220/230/240V |
| Frequency | 50/60 Hz autoselection |
| Frequency Range | 40-70 Hz |
| Electrical Output | |
| Voltages | 208V*/220V/230V/240V ±1% |
| Voltage THD | <2% for 100% linear load |
| Outlets |
(4) IEC-320-C13
 |
| Overload Capacity | 105%-130% : 60s, 130%-150% : 10s,>150% : ≥ 300ms |
| Efficiency (Normal Mode) | Up to 91% in Online mode |
| Output Frequency | 50/60 Hz autoselect |
| Communications | |
| Communication Ports | 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) |
| Communication Slot | 1 slot for Network-M2, ModBus-MS or Relay-MS cards |
| Power Management Software | Intelligent Power Editions |
| Environmental & Standards | |
| Audible Noise | <37 db="" typical="" load="" td=""> |
| Operating Temperature | 0 to 40°C |
| Safety markings | IEC/EN 62040-1 |
| EMC Markings | IEC/EN 62040 -2 |
| Approvals | CE, CB report (TUV) |
