Part number HP
Thunderbolt Dock 120W G2 2UK37AA
Dimensions
(H x W x D) 3.9 x 3.9 x 2.7 in (98 x 98 x 69 mm)
Weight
1.76 lbs (0.8 kg)
Top components
LED and power button to power or wake host system

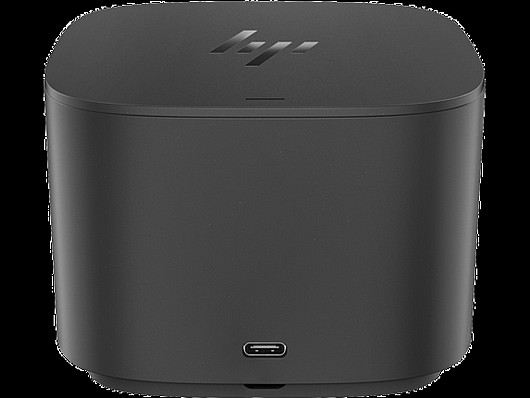

Front components
One USB-CTM port with data and power out (15W) One USB-CTM cable to connect to host system (0.7 meter cable length)

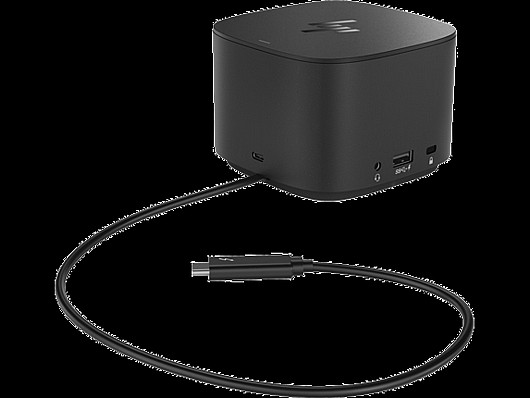

Side components
One powered USB 3.0 port One combo audio jack One Kensington lock slot

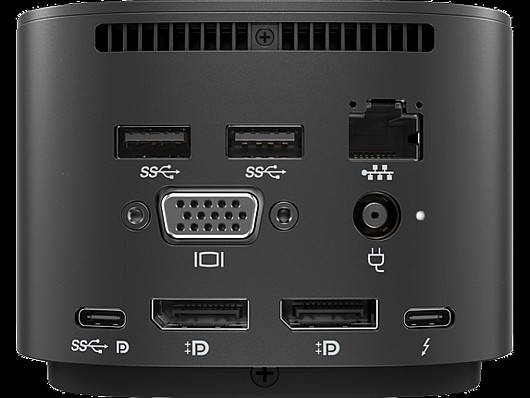

Back components
One ThunderboltTM port One USB-CTM DisplayPortTM, data and power out port (15W) Two DisplayPortTM ports One VGA port Two USB 3.0 ports One RJ45 port One AC adapter
Network manageability features
PXE Boot Wake on LAN (from the Off, Sleep or Hibernation States2 ) MAC Address Pass Through (from the On, Off, Sleep or Hibernation States3 ) WLAN-LAN Switching4
External monitor support
Up to 4
Power delivery (PD) profiles
PD 3.0: 5V/5A, 9V/5A, 12V/5A, 15V/5A, 20V/5A
Power to system
Up to 100W via USB-CTM Power over AC pass through cable (barrel connection) up to 200W for 230W and Combo SKUs
Operating voltage and current
19.7 V dc @ 6.1 A – 120W
