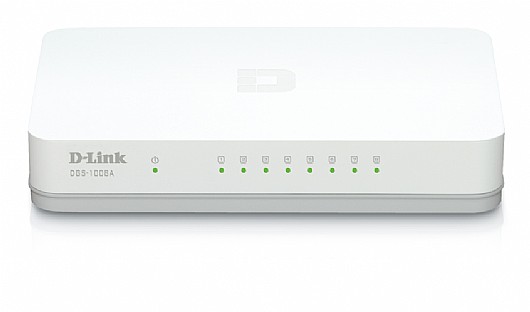

רכזת רשת/ממתג D-Link DGS1008A

Main functions
• Built-in D-Link Green
• Gigabit great solution for home networking and SOHO Networks
• 8-port 10/100/1000 Mbit / s Gigabit
• Switching matrix 16 Gbit / s
• Auto MDI / MDIX on all ports
• Switching method: store-and-forward
• Modes of semi-and full-duplex speeds for Ethernet / Fast Ethernet
• 802.3x Flow Control
• Support for Jumbo-Frames 9216 bytes
• Compliance with the RoHS Directive
• Installation of Plug-and-play

Standards
• IEEE 802.3 10BASE-T Ethernet (copper twisted pair)
• IEEE 802.3u 100BASE-TX Fast Ethernet (copper twisted pair)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (copper twisted pair)
• Auto-negotiation of ANSI / IEEE 802.3 NWay
• 802.3x Flow Control

Protocol
• CSMA / CD

Data transfer rate
• Ethernet
- 10 Mbit / s (half duplex)
- 20 Mbit / s (full duplex)
• Fast Ethernet
- 100 Mbit / s (half duplex)
- 200 Mbit / s (full duplex)
• Gigabit Ethernet
- 2000 Mb / s (full duplex)

Topology
• Star

Network Cables
• 10BASE-T:
- UTP Cat. 3, 4, 5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 meters max.)
• 100BASE-TX, 1000BASE-T:
- UTP Cat. 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 meters max.)

Media Interface Exchange
• Automatic identification of MDI / MDIX on all ports

Indicators
• The Port: Link / Activity / Speed
• Per device: Power

Switching Method
• Store-and-forward

MAC-address table
• 8K entries per device

MAC-addresses study
• Automatic update

Filtration rate / packet
• Ethernet: 14,880 packets per second. to port
• Fast Ethernet: 148,800 packets per second. to port
• Gigabit Ethernet: 1488000 packets per second. to port

RAM buffer
• 128K on device

Input power
• Power Adapter Level "V" 5 V / 1 A

Power consumption
• Input Power: 3.9 Tues AC, 3.06 V DC

MTBF
• 412 933 h

Operating temperature
• From 0 to 40 ° C

Storage temperature
• From -10 To 70 C

Operating humidity
• From 10% to 90% noncondensing

Storage humidity
• 5% to 90% noncondensing

Dimensions
• 128 x 68,5 x 25,4 mm

Certificates
• CE Class B
• FCC Class B
• ICES-003 Class B
• VCCI Class B
• C-Tick
• Anatel
• CCC
• LVD
• cUL / UL
