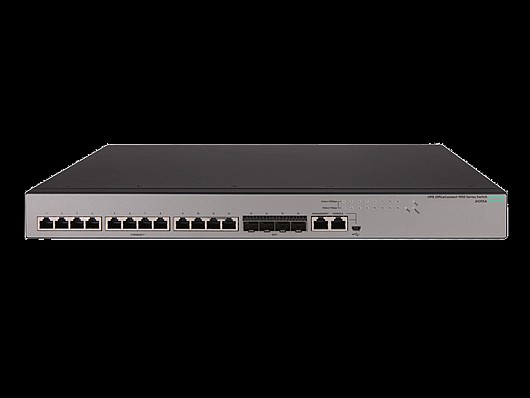

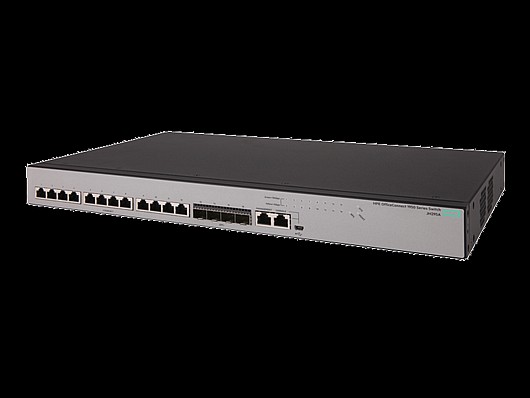

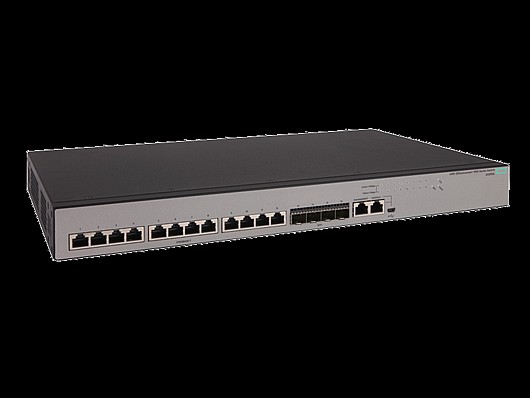

øëæú øùú / îîúâ HPE OfficeConnect 1950 12XGT 4SFP JH295A

Technical Specifications

Differentiator

• Advanced smart web managed 10G aggregator for small business core.
  This model is a 10-Gigabit aggregator switch with 12x 10GBASE T copper ports and four SFP+ ports for SFP+/SFP fiber connections.

Ports

• Model dependent: 28-port models have (24) 10/100/1000 ports plus (2) fixed GE/10G SFP+ and (2) GE/10GBase-T ports. 52-port models have (48) 10/100/1000 ports plus (2) fixed GE/10G SFP+ and (2) GE/10GBase-T ports. Two models with PoE+. Console port on all units.

Latency

• 100 Mb Latency: < 5 µs
• 1000 Mb Latency: < 5 µs
• 10 Gbps Latency: < 1.5 µs

Throughput

• Model dependent: 28-port models 95.2 Mpps, 52-port models 130.9 Mpps.

Routing/switching capacity

• Model dependent: 28-port models 128 Gbps, 52-port models 176 Gbps.

PoE capability

• Both PoE+ models support 370 Watt PoE/PoE+ power budget. For 48-Port PoE+ model, optional RPS for up to 780 Watt PoE/PoE+ power budget.

Stacking capabilities

• Four-high resilient stacking using dual 10GbE ports (copper or fiber) 40 Gbps total stacking bandwidth.

Management features

• IMC - Intelligent Management Center
• Limited command-line interface
• Web browser
• SNMP manager
• HTTPS
• RMON1
• FTP
• Supported by HPE IMC and generic SNMP management platforms. Refer to documentation for MIB support details.

Input voltage

• 100-240 VAC
