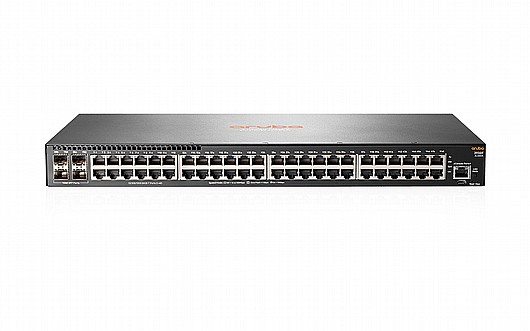

DifferentiatorPopular Aruba 52-port Gig access switch.
This model has 48x 10/100/1000 ports and 4x 1000/100 SFP transceiver slots for uplink connectivity.
Power consumption46.6 W (maximum)
Heat dissipation100 BTU/hr (105.5 kJ/hr)
Input voltage100 - 127 / 200 - 240 VAC, rated
Ports(48) RJ-45 autosensing 10/100/1000 ports
(4) SFP
Latency1000 Mb Latency: < 3.8 µs
Switching capacity104 Gbps
Throughputup to 77.4 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC
PoE capability740 W PoE+ maximum, depending on model
Management featuresAruba AirWave
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
WarrantyLimited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Weight6.83 lb
Weight3.1 kg
Minimum dimensions ( H x W x D)1.73 x 17.42 x 9.7 in
Minimum dimensions ( H x W x D)4.39 x 44.25 x 24.63 cm
