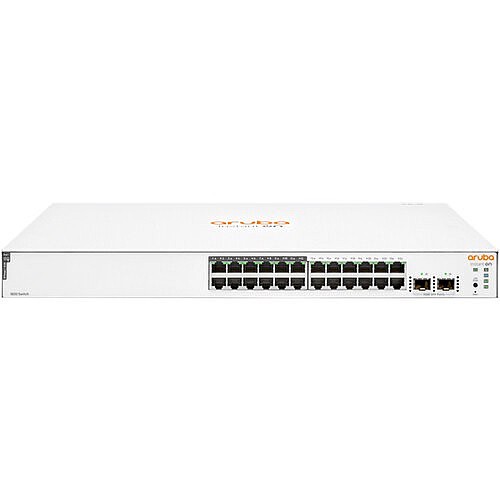

øëæú øùú / îîúâ Aruba Instant On 1830 JL813A 24-Port PoE

DifferentiatorEntry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 2 SFP 1GbE ports, and provides 195 W of Class 4 PoE power.

Power consumptionMaximum: 100-127V: 244.6W 200-220V: 237.2W; Idle: 100-127V: 14.5W 200-220V: 13.4W

Input voltage100 - 240 VAC

Ports24 RJ-45 10/100/1000 Class 4 PoE ports, 2 SFP 1GbE ports

Switching capacity52 Gbps

Throughput38.68 Mpps

Memory and processorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

PoE capability195W

Operating temperature0-40°C, 0-10,000 ft

Management featuresAruba Instant On Cloud; Web browser; SNMP Manager

WarrantyLimited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight7.65 lb

Weight3.47 kg

Dimensions9.96 x 17.44 x 1.73 in

Dimensions25.30 x 44.30 x 4.39 cm
