מחיר ₪ 989 ILS 12/7/2027 Out of stock https://www.pccenter.co.il/product/ראוטר-סלולרי-cudy-4g-lte-a-pro-ax1800-wi-fi-6-lt18 CUDY
| Model Version | LT18 1.0 | |
|---|---|---|
| CPU | Chipset | MT7621 |
| CPU Details | 880 MHz Dual-Core, MIPS1004Kc | |
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 256 MB (2 Gbit) DDR3 | |
| Cellular | Cellular Standards | 4G LTE Cat. 18 |
| Cellular Antennas | 4× Detachable | |
| Detachable Cellular Antennas Connector | SMA Female | |
| SIM Options | 2× Nano SIM Slots | |
| Available Versions | EU, US | |
| EU Version Cellular | Suitable Region | Europe, Middle East, Africa, Australia, Brazil |
| Max DL Speed | 1.2 Gbps (LTE-FDD), 573 Mbps (LTE-TDD) | |
| Max UL Speed | 150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD) | |
| Advanced | DL 3CA, DL 4×4 MIMO | |
| Cellular Bands | LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/B40/41 WCDMA: B1/3/5/8 |
|
| US Version Cellular | Suitable Region | United States, Canada |
| Max DL Speed | 1.2 Gbps (LTE-FDD), 573 Mbps (LTE-TDD) | |
| Max UL Speed | 150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD) | |
| Advanced | DL 5CA, DL 4×4 MIMO | |
| Cellular Bands | LTE-FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71 LTE-TDD: B41 WCDMA: B2/4/5 |
|
| Wireless | 5 GHz Wi-Fi Speed | 1201 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 2× Fixed | |
| 5 GHz Antenna Gain Max | 5.18 dBi | |
| 2.4 GHz Antenna Gain Max | 3.16 dBi | |
| Beamforming | True | |
| FEM or PA/LNA |
|
|
| Range Performance | Max: 170 m (558 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
|
| Wall Performance | One wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') |
|
| Interfaces | Physical Buttons |
|
| Gigabit RJ45 Ports | 4 | |
| Ethernet Notes | One port supports WAN/LAN configuration, and the rest are LAN ports | |
| LED |
|
|
| Power Input | DC Jack | |
| Power | Power Methods | DC |
| DC | 12V 1.5A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1.5A DC |
|
| Reliability | ESD Contact Protection | 4kV |
| ESD Air Protection | 8kV | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
| Certifications | FCC, CE | |
| Mechanical | Dimension | 253×152.5×48.2 mm 9.96×6×1.9 inches |
| Product Weight | 656 g (23.14 oz.) | |
| Installation |
|
|

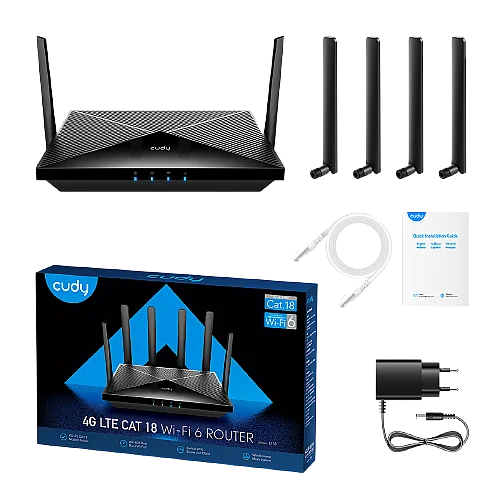

| Package Content |
|
|
| Ordering Information | Retail Package Weight | EU / US: 1153 g (40.67 oz.) |
| Retail Package Dimension | 393×250×60 mm 15.47×9.84×2.36 inches |
|
| Units per Carton | 10 | |
| Carton Net Weight | EU / US: 11.5 kg (25.35 lbs) | |
| Carton Gross Weight | EU / US: 12.7 kg (28 lbs) | |
| Carton Dimension | 40.8×33×52.5 cm 16.06×12.99×20.67 inches |
|
