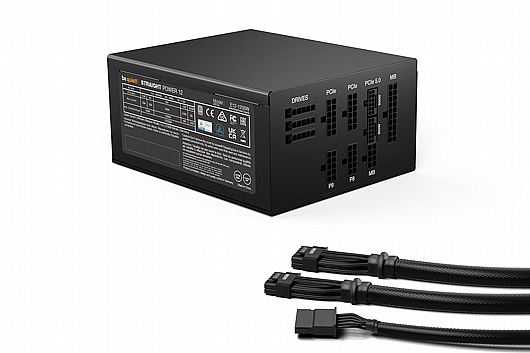

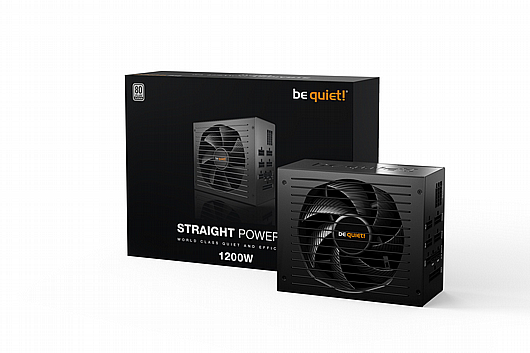

מחיר ₪ 1,235 ILS 9/7/2027 Out of stock https://www.pccenter.co.il/product/ספק-כוח-be-quiet-straight-power-12-1200w-bn339 !be quiet 1039418 1039418
| Model | Straight Power 12 1200W |
| Continuous power (W) | 1200 |
| Peak power (W) | 1270 |
| Form factor | Version 3.0 |
| Form factor EPS 12V | Version 2.92 |
| Topology | Full bridge + LLC + SR + DC/DC |
| Digitally controlled | - |
| Voltage (Vac) | 110 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 15 / 7.5 |
| Power factor at 100% load | >0.99 |
| Modern standby | ✓ |
| Power consumption in standby (W) | 0.14 |
| Average life time (h / 25°C) | >100,000 |
| Operating temperature up to (°C) | 40 |
| 80 PLUS certification | Platinum |
| Efficiency (%) at 230V, 2% load | 65.0 |
| Efficiency (%) at 230V, 10% load | 89.0 |
| Efficiency (%) at 230V, 20% load | 93.1 |
| Efficiency (%) at 230V, 50% load | 93.7 |
| Efficiency (%) at 230V, 100% load | 92.4 |
| Fan | Silent Wings |
| Fan size (mm) | 135 |
| Bearing technology | FDB |
| Motor technology | 6-pole fan motor |
| Max. fan speed (rpm) | 2600 |
| dB(A) at 10% load | 9.4 |
| dB(A) at 20% load | 9.4 |
| dB(A) at 50% load | 9.8 |
| dB(A) at 100% load | 32.2 |
| Multi-rail operation (12V rails) | - |
| 12V single rail operation | ✓ |
| Overclocking key | - |
| +3.3V (A) | 25 |
| +5V (A) | 25 |
| +12V1 (A) | 100 |
| +12V2 (A) | - |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.5 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 1200 |
| Max. combined power 12VHPWR (W) | 800 |
| Max. combined power 3.3V + 5V (W) | 150 |
| Hold-up time at 100% load (ms) | 23 |
| Hold-up time at 80% load (ms) | - |
| Power good signal (ms) | 100 - 150 |

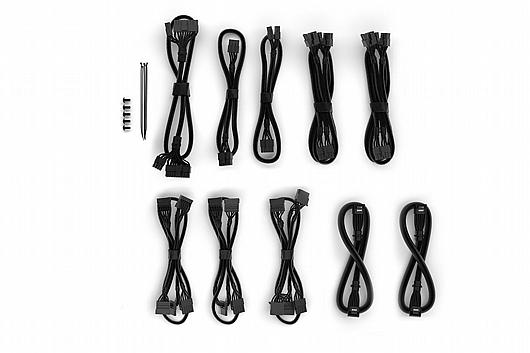

| Modular cables | ✓ |
| Sleeved cables | ✓ |
| Flat cables | - |
| Maximum cable length (cm) | 100 |
| Cable length to motherboard (cm) | 60 |
| No. of cables | 10 |
| ATX-Motherboard (20+4-pin) | 1 |
| P4+4 (CPU) | 1 |
| P8 (CPU) | 1 |
| P4 (CPU) | - |
| 12VHPWR cables | 2 |
| PCI-e 6+2-pin (GPU) | 4 |
| PCI-e 6-pin (GPU) | - |
| SATA | 9 |
| PATA | 2 |
| FDD (Floppy) | - |
| OTP (over temperature protection) | ✓ |
| OCP (over current protection) | ✓ |
| OPP (over power protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OVP (over Voltage protection) | ✓ |
| UVP (under Voltage protection) | ✓ |
| SIP (Surge & Inrush protection) | ✓ |
| BSMI | ✓ |
| CB | ✓ |
| CCC | ✓ |
| CE | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| CU | ✓ |
| FCC | ✓ |
| RCM | ✓ |
| TÜV | ✓ |
| UKCA | ✓ |
| Energy Star | 8.0 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Triman | ✓ |
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW, KR |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
| Dimensions without cable (L x W x H), (mm) | 180 x 150 x 86 |
| Weight (kg) | 2.04 |
| Color | Black |
| Warranty (Years) | 10 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | ✓ / DE, FR, US |
| Article number | BN517 |
| EAN code | 4260052190302 |
| Dimensions, package (L x W x H), (mm) | 328 x 248 x 102 |
| Gross weight, package (kg) | 3.9 |
| Pieces per packaging unit | 4 |
| Dimensions, shipping box (L x W x H), (mm) | 447 x 282 x 346 |
| Gross weight, shipping box (kg) | 17.0 |
| RRP (€) | 249.90 |
