| Model Version |
LT15V 1.0 |
|---|
|
| CPU |
Chipset |
MT7981 |
|---|
|
CPU Details |
1.3 GHz Dual-Core, ARM Cortex-A53 |
|---|
|
| Memory/Storage |
Flash/ROM |
128 MB (1 Gbit) NAND |
|---|
|
DDR/RAM |
256 MB (2 Gbit) DDR3 |
|---|
|
| Cellular |
Cellular Standards |
4G LTE Cat. 12 |
|---|
|
Cellular Antennas |
4× Internal, 2× SMA Connectors for Customized Antennas |
|---|
|
Detachable Cellular Antennas Connector |
SMA Female |
|---|
|

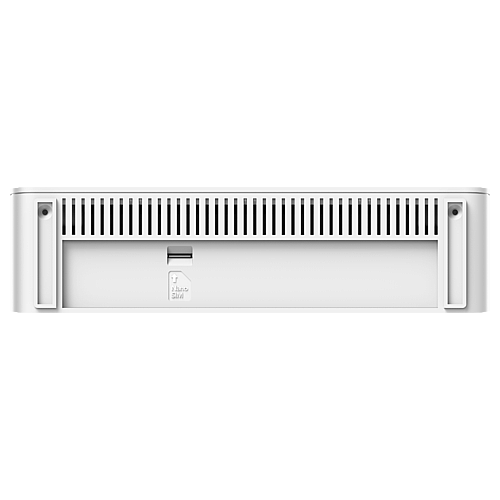

SIM Options |
1× Nano SIM Slot, eSIM (optional) |
|---|
|
Available Versions |
EU, US |
|---|
|
| EU Version Cellular |
Suitable Region |
Europe, Middle East, Africa, Australia, Brazil |
|---|
|
Max DL Speed |
600 Mbps (LTE-FDD), 430 Mbps (LTE-TDD) |
|---|
|
Max UL Speed |
150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD) |
|---|
|
Advanced |
DL 3CA, DL 4×4 MIMO |
|---|
|
Cellular Bands |
LTE-FDD: B1/3/5/7/8/20/28/
LTE-TDD: B38/40/41
WCDMA: B1/3/5/8 |
|---|
|
| US Version Cellular |
Suitable Region |
United States, Canada |
|---|
|
Max DL Speed |
600 Mbps (LTE-FDD), 430 Mbps (LTE-TDD) |
|---|
|
Max UL Speed |
150 Mbps (LTE-FDD), 90 Mbps (LTE-TDD) |
|---|
|
Advanced |
DL 3CA, DL 4×4 MIMO |
|---|
|
Cellular Bands |
LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71
LTE-TDD: B41/48 |
|---|
|
| Wireless |
5 GHz Wi-Fi Speed |
2402 Mbps |
|---|
|
2.4 GHz Wi-Fi Speed |
574 Mbps |
|---|
|
5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|---|
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO) |
|---|
|
Wi-Fi Antennas |
3× Internal |
|---|
|
5 GHz Antenna Gain Max |
5 dBi |
|---|
|
2.4 GHz Antenna Gain Max |
5 dBi |
|---|
|
Beamforming |
True |
|---|
|
FEM or PA/LNA |
- 5 GHz: 3× Internal
- 2.4 GHz: 2× Internal
|
|---|
|
Range Performance |
Max: 180 m (591 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. |
|---|
|
Wall Performance |
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
|---|
|

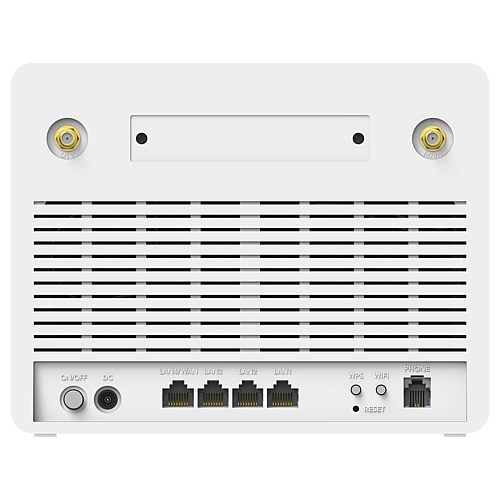

| Interfaces |
Physical Buttons |
- WPS Button
- Reset Button
- Wi-Fi On/Off Button
|
|---|
|
Gigabit RJ45 Ports |
4 |
|---|
|
Ethernet Notes |
One port supports WAN/LAN configuration, and the rest are LAN ports |
|---|
|
FXS Ports |
1× RJ11 (VoLTE) |
|---|
|

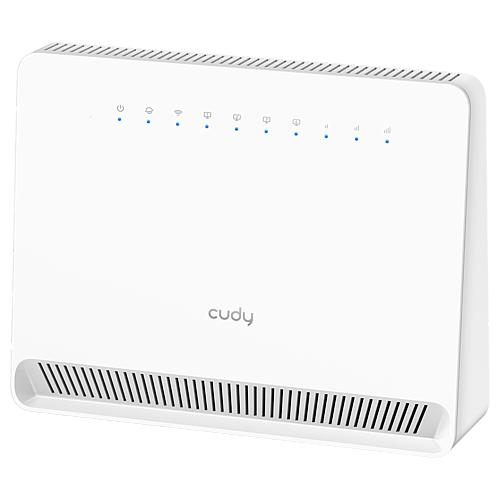

LED |
- Power
- System
- Internet
- 2.4 GHz Wi-Fi
- 5 GHz Wi-Fi
- Phone
- LAN
- Cellular Signal Strength
|
|---|
|
Power Input |
DC Jack |
|---|
|
| Power |
Power Methods |
DC |
|---|
|
DC |
12V 1.5A |
|---|
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC |
|---|
|
Max Power Consumption (W) |
13W |
|---|
|
Idle Power Consumption (W) |
6W |
|---|
|
| Reliability |
EMS |
ESD: Contact: 4kV; Air: 8kV |
|---|
|
Environment |
Operating Humidity: 0% ~ 100% non-condensing |
|---|
|
| Certifications |
FCC, CE |
|---|
|
| Mechanical |
Dimension |
190×50×148.8 mm
7.48×1.97×5.86 inches |
|---|
|
Product Weight |
412 g (14.53 oz.) |
|---|
|
Installation |
Desktop |
|---|
|
| Package Content |
- LT15V
- Power Adapter
- Ethernet Cable
- Installation Guide
|
|---|
|
| Ordering Information |
Retail Package Weight |
EU: 729 g (25.71 oz.) |
|---|
|
Retail Package Dimension |
270×58×168 mm
10.63×2.28×6.61 inches |
|---|
|
Units per Carton |
20 |
|---|
|
Carton Net Weight |
EU: 14.5 kg (31.97 lbs) |
|---|
|
Carton Gross Weight |
EU: 15.4 kg (33.95 lbs) |
|---|
|
Carton Dimension |
55.8×31.7×36.3 cm
21.97×12.48×14.29 inches |
|---|
