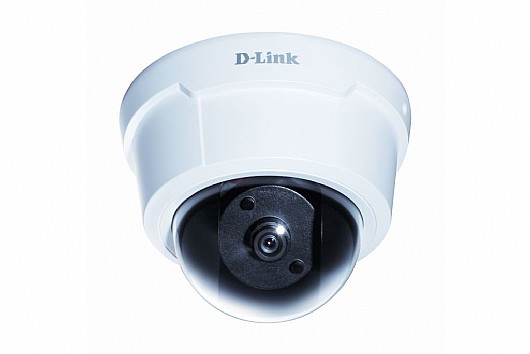

מצלמת אבטחה D-Link DCS-6112V

Key features
• 1/2 inch, 7-megapixel CMOS-sensor with progressive scan technology
• The lens is fixed focal length of 4 mm, F1.5 (horizontal viewing angle - 77,4 °)
• 16x digital zoom
• Flash-Memory 128 MB
• SDRAM, 256 MB
• Minimum illumination: 0.12 lux/F1.5

Functional videos
• Setting quality, size and speed of image transmission
• Timestamps and paste text
• Three windows to configure the motion detection
• Functions ePTZ
• 5 private masks
• Flip and mirror image
• Custom white balance, shutter speed, adjust brightness, saturation, contrast,

Video Compression
• Video compression formats H.264/MPEG4/MJPEG
• JPEG for still images
• H.264/MPEG-4 multicast streaming

Video Resolution
• 1920x1080 @ 15 fps, 1280x1024 @ 20 fps, 1280x720 @ 30 fps, 640x480 @ 30 fps, 320x240 @ 30 fps, 176x144 @ 30 fps

Audio support
• Voice compression (GCM-AMR), rate from 4.75 kbit / s to 12.2 kbit / s
• Audio Coding (MPEG-4, AAC), transfer rate: 16 kbit / s to 128 kbit / s
• Supports two-way transmission of sound and the ability to mute the sound (mute)

Network protocols
• IPv4, TCP / IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding , RTP / RTSP / RTCP, IP filtering, 3GPP, LLTD, CoS / QoS, SNMP, IGMP, 802.1x, ONVIF

Security
• Protection of the Administrator account and user group
• Authentication by password
• Digital encryption, HTTP and RTSP
• HTTPS streaming
• Control access of remote users

System requirements
• Operating System: Microsoft Windows 7/Vista/XP/2000
• Browser: Internet Explorer 6 or higher, Chrome, Firefox, Safari

System requirements for the D-ViewCam™
• Operating System: Microsoft Windows 7/Vista/XP/2000
• Browser: Internet Explorer 6 or higher, Chrome, Firefox, Safari
• Protocol: Standard TCP / IP

Event management
• Motion detection
• Detection of attempts to tamper (Tamper Detection)
• Support for multiple servers, HTTP, SMTP and FTP
• Event notification and download snapshots / video clips through HTTP, SMTP or FTP
• Multiple event notifications
• Several ways to backup

Remote management
• Setting up a Web-browser
• Obtaining snapshots / video and save to your local hard drive or NAS via Web-browser

Software features
• Remote management / control of up to 32 cameras
• View images from 32 cameras on one screen
• Supports all management functions through a Web-based interface
• Option to record the image sensor or manual operation

Support for mobile phones and software
• Mobile phone with 3GPP-player, QuickTime 6.5, Real Player 10.5, Windows 7, Vista, XP, 2000

External interfaces of the device
• One D / I-interface and a D / O-interface for external sensor and alarm
• Audio input (MIC in)
• Audio / video output (AV out)
• Switching the TV system (NTSC / PAL)
• Slot for MicroSD-card

Input power
• 12 Vdc 1,25 A, 50/60 Hz, 802.3af PoE

Max. power consumption
• 4.4 W

Operating temperature
• From 0 to 40 ° C

Storage temperature
• -20 To 70 ° C

Protection
• IK-10

Humidity
• 90% (no condensation)

Weight
• 572 g

Certificates
• CE (Class A), CE LVD (EN60965-1), FCC (Class A), ICES-003, C-Tick
