ממתג KVM CS1308 משתמש אחד ל 8 מחשבים תומך PS2/USB

המוצר לא זמין לרכישה, לחץ כאן למוצרים דומים
ממתג KVM משתמש אחד ל 8 מחשבים תומך PS2/USB מאפשר מיתוג ע"י המקלדת דרך OSD או ע"י כפתורים בחזית היחידה

<למידע נוסף

<למידע נוסף

  • מקט 1010674
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי- בתיאום מראש 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 0 ₪
    סגירה
  • יצרן  Level One
  • זמן אספקה עד5ימי עסקים
  • אחריות שנה בחנות
  • מספר תשלומים  36
מחיר כולל תוספות : 1,401 ₪
רגיל רגיל ₪2,250

מבצע   ₪ 1,401 ILS 9/7/2027 Out of stock Level One 1010674 1010674

  • +
  • -

טבלת תשלומים

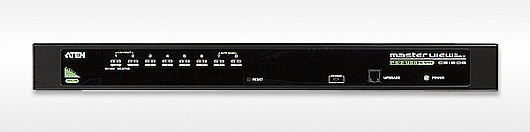

CS1308
8-Port PS/2 - USB KVM Switch
The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded* bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.

Patent NO. : US 7585176
Features
One USB-PS/2 console controls 8 computers
Cascade up to 2 levels* - control up to 64 computers
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgradeable
No software installation required
Designed for desktop or rack mount (19" system rack, 1U)

*Cascade function only works with USB KVM cable set connections.
Package Content
1x CS1308 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Grounding wire
1x Foot Pad set (4 pads)
1x Power Adapter (AC Models)
1x User Manual
1x Quick Start Guide

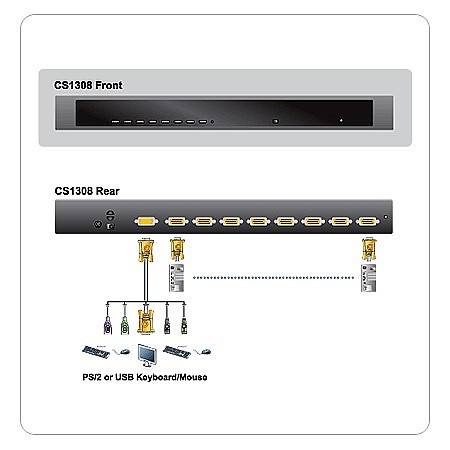

Diagram
Specification
Computer Connections Direct 8
Max. 64 (via Cascade)
Port Selection OSD, Hotkeys, Pushbuttons
Connectors Console Port Keyboard 1 x SPHD-18 Male (Yellow)
Video
Mouse
KVM Ports Keyboard 8 x SPHD-15 Female (Yellow)
Video
Mouse
FW Upgrade 1 x RJ-11 Female (Black)
Power 1 x DC Jack
Switches Port 8 x Pushbutton
FW Upgrade 1 x Slide
LEDs On Line 8 (Orange)
Selected 8 (Green)
Power 1 (Dark Green)
Emulation Keyboard/Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1-255 Seconds
Power Consumption DC 5.3 V; 5 W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 1.89 kg
Dimensions
(L x W x H)		 43.30 x 16.00 x 4.40 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
