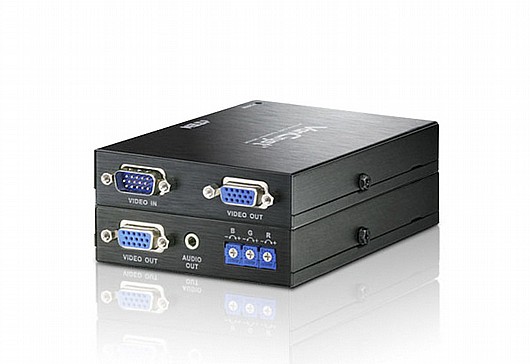

מבצע ₪ 1,595 ILS 8/7/2027 In stock https://www.pccenter.co.il/product/מאריך-aten-av-over-cat5-extender-300m-ve170q ATEN 1024053 1024053
| Function | VE170RQ | VE170T |
| Video Input | ||
| Interfaces | N/A | 1 x HDB-15 Male (Blue) |
| Impedance | N/A | 75 Ώ |
| Max. Distance | N/A | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDB-15 Female (Blue) | 1 x HDB-15 Female (Blue) |
| Impedance | 75 Ώ | 75 Ώ |
| Video | ||
| Max. Bandwidth | 300 MHz | 300 MHz |
| Max. Resolutions / Distance | Up to 1920 x 1200@150m; 1280 x 1024@300m | Up to 1920 x 1200@150m; 1280 x 1024@300m |
| Audio | ||
| Output | 1 x Mini Stereo Jack Female (Green) | 1 x Mini Stereo Jack Female (Green) |
| Input | N/A | 1 x Mini Stereo Jack Female (Green) |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Environmental | ||
| Operating Temperature | 0-50°C | 0-50°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.24 kg ( 0.53 lb ) | 0.24 kg ( 0.53 lb ) |
| Dimensions (L x W x H) | 12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.) |
| Carton Lot | 5 pcs | 5 pcs |
| Power Consumption | DC5.3V:5.24W:25BTU | DC5.3V:2.42W:11BTU |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
