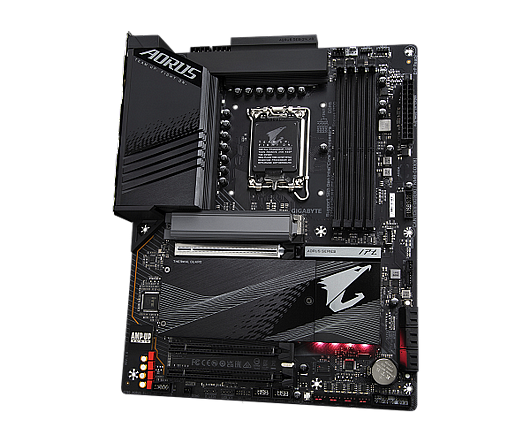

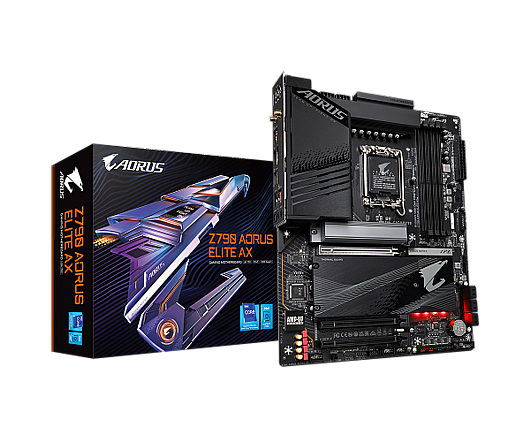

לוח אם Gigabyte Z790 AORUS ELITE AX

לוח אם Gigabyte Z790 AORUS ELITE AX
SOCKET 1700 תואם לדור 12 13 ו14 בלבד
DDR5
אחריות שלוש שנים

<למידע נוסף

<למידע נוסף

  • מקט 1045494
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי בחינם
    • משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 40 ₪
    סגירה
  • יצרן  GIGABYTE
  • זמן אספקה עד5ימי עסקים
  • אחריות שלוש שנים
  • מספר תשלומים  36

מחיר   ₪ 1,149 ILS 23/7/2027 In stock GIGABYTE

  • +
  • -
הוסף לסל

טבלת תשלומים

      • CPU
        1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
        2. L3 cache varies with CPU
        (Please refer "CPU Support List" for more information.)
      • Chipset
        1. Intel® Z790 Express Chipset
      • Memory
        1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
        2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
        3. Dual channel memory architecture
        4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        6. Support for Extreme Memory Profile (XMP) memory modules
        (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
      • Onboard Graphics
      • Integrated Graphics Processor-Intel®HD Graphics support:
        1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
          * Support for HDMI 2.1 version and HDCP 2.3.
          ** Support native HDMI 2.1 TMDS compatible ports.
        2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
          * Support for DisplayPort 1.2 version and HDCP 2.3
        (Graphics specifications may vary depending on CPU support.)
      • Audio
        1. Realtek® Audio CODEC
        2. High Definition Audio
        3. 2/4/5.1/7.1-channel
          * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
        4. Support for S/PDIF Out
      • LAN
        1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
      • Wireless Communication module
      • Intel®Wi-Fi 6E AX211
        1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
        2. BLUETOOTH 5.3
        3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
          * Actual data rate may vary depending on environment and equipment.
          * Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
      • Expansion Slots
      • CPU:
        1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
          * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
        Chipset:
        1. 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)
      • Storage Interface
      • CPU:
        1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
        Chipset:
        1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
        2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
        3. 6 x SATA 6Gb/s connectors
        RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

        RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
        * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
      • USB
      • Chipset:
        1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
        2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
        3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
        4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
        Chipset+2 USB 2.0 Hubs:
        1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
      • Internal I/O Connectors
        1. 1 x 24-pin ATX main power connector
        2. 2 x 8-pin ATX 12V power connectors
        3. 1 x CPU fan header
        4. 1 x water cooling CPU fan header
        5. 3 x system fan headers
        6. 1 x system fan/water cooling pump header
        7. 2 x addressable LED strip headers
        8. 2 x RGB LED strip headers
        9. 4 x M.2 Socket 3 connectors
        10. 6 x SATA 6Gb/s connectors
        11. 1 x front panel header
        12. 1 x front panel audio header
        13. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
        14. 1 x USB 3.2 Gen 1 header
        15. 2 x USB 2.0/1.1 headers
        16. 2 x Thunderbolt™ add-in card connectors
        17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
        18. 1 x reset button
        19. 1 x Q-Flash Plus button
        20. 1 x Clear CMOS button
        21. 1 x reset jumper
        22. 1 x Clear CMOS jumper

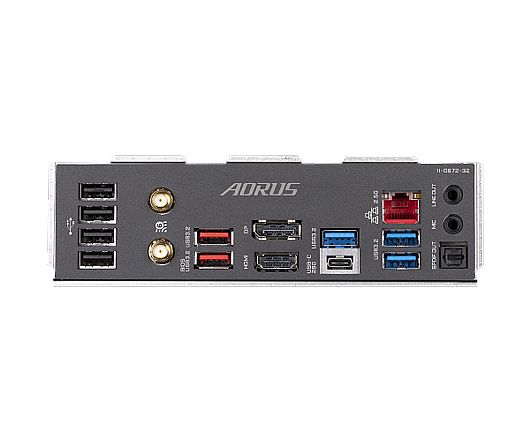

      • Back Panel Connectors
        1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
        2. 2 x USB 3.2 Gen 2 Type-A ports (red)
        3. 3 x USB 3.2 Gen 1 ports
        4. 4 x USB 2.0/1.1 ports
        5. 2 x SMA antenna connectors (2T2R)
        6. 1 x HDMI port (Note)
        7. 1 x DisplayPort (Note)
        8. 1 x RJ-45 port
        9. 1 x optical S/PDIF Out connector
        10. 2 x audio jacks
        (Note) Actual support may vary by CPU.
      • I/O Controller
        1. iTE® I/O Controller Chip
      • H/W Monitoring
        1. Voltage detection
        2. Temperature detection
        3. Fan speed detection
        4. Water cooling flow rate detection
        5. Fan fail warning
        6. Fan speed control
          * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
      • BIOS
        1. 1 x 256 Mbit flash
        2. Use of licensed AMI UEFI BIOS
        3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
      • Unique Features
        1. Support for GIGABYTE Control Center (GCC)
          * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        2. Support for Q-Flash
        3. Support for Q-Flash Plus
        4. Support for Smart Backup
      • Bundled Software
        1. Norton® Internet Security (OEM version)
        2. LAN bandwidth management software
          * Service discontinued as a result of contract termination by the software provider.
      • Operating System
        1. Support for Windows 11 64-bit
        2. Support for Windows 10 64-bit
      • Form Factor
        1. ATX Form Factor; 30.5cm x 24.4cm

      * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
      * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
      * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
      * All trademarks and logos are the properties of their respective holders.
      * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
