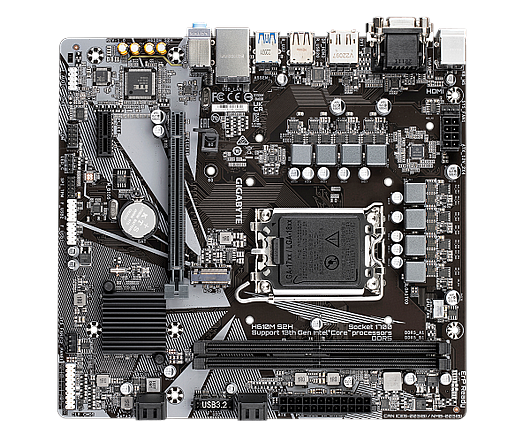

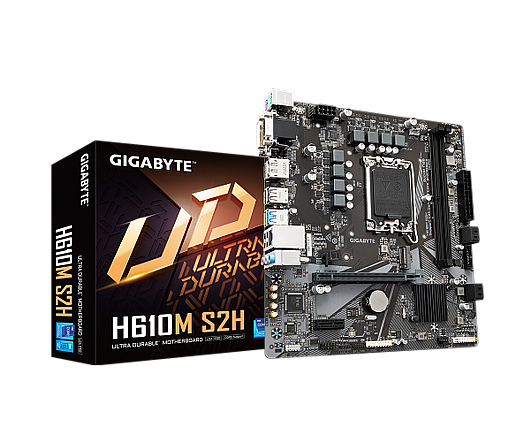

לוח אם Gigabyte H610M S2H DDR5

Socket 1700
עבור מעבדי דור 12 ו13 בלבד

<למידע נוסף

<למידע נוסף

  • מקט 1039416
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 40 ₪
    • איסוף עצמי- בתיאום מראש 0 ₪
    סגירה
  • יצרן  GIGABYTE
  • זמן אספקה עד5ימי עסקים
  • אחריות שלוש שנים
  • מספר תשלומים  36

מחיר   ₪ 390 ILS 12/7/2027 In stock GIGABYTE 1039416 1039416

  • +
  • -
הוסף לסל

טבלת תשלומים

    • CPU
      1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
      2. L3 cache varies with CPU
      * Please refer to "CPU Support List" for more information.
    • Chipset
      1. Intel® H610 Express Chipset
    • Memory
      1. 13th Generation Intel® Core™ i9/i7 processors:
        Support for DDR5 5600/5200/4800/4400 MT/s memory modules
      2. 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
        Support for DDR5 4800/4400 MT/s memory modules
      3. 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
      4. Dual channel memory architecture
      5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      7. upport for Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)
    • Onboard Graphics
      Integrated Graphics Processor-Intel® HD Graphics support:
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
        * The DVI-D port does not support D-Sub connection by adapter.
      3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
        * Support for HDMI 2.1 version and HDCP 2.3.
        ** Support native HDMI 2.1 TMDS compatible ports.
      4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
        * Support for DisplayPort 1.2 version and HDCP 2.3
      (Graphics specifications may vary depending on CPU support.)
      Support for up to 3 displays at the same time
    • Audio
      1. Realtek® Audio CODEC
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    • LAN
      1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)
    • Expansion Slots
      CPU:
      1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
      Chipset:
      1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    • Storage Interface
      Chipset:
      1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
      2. 4 x SATA 6Gb/s connectors
    • USB
      Chipset:
      1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 4 x USB 2.0/1.1 ports on the back panel
      Chipset+USB 2.0 Hub:
      1. 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 1 x CPU fan header
      4. 2 x system fan headers
      5. 1 x M.2 Socket 3 connector
      6. 4 x SATA 6Gb/s connectors
      7. 1 x RGB LED strip header
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x USB 3.2 Gen 1 header
      11. 2 x USB 2.0/1.1 headers
      12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
      13. 1 x serial port header
      14. 1 x Clear CMOS jumper

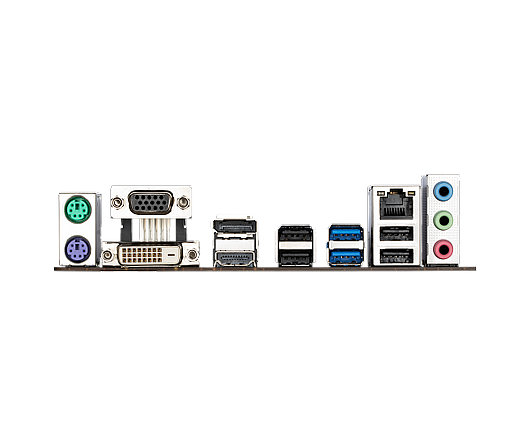

    • Back Panel Connectors
      1. 1 x PS/2 keyboard port
      2. 1 x PS/2 mouse port
      3. 1 x D-Sub port
      4. 1 x DVI-D port
      5. 1 x DisplayPort
      6. 1 x HDMI port
      7. 2 x USB 3.2 Gen 1 ports
      8. 4 x USB 2.0/1.1 ports
      9. 1 x RJ-45 port
      10. 3 x audio jacks
    • I/O Controller
      1. iTE® I/O Controller Chip
    • H/W Monitoring
      1. Voltage detection
      2. Temperature detection
      3. Fan speed detection
      4. Water cooling flow rate detection
      5. Fan fail warning
      6. Fan speed control
        * Whether the fan speed control function is supported will depend on the cooler you install.
    • BIOS
      1. 1 x 128 Mbit flash
      2. Use of licensed AMI UEFI BIOS
      3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
      1. Support for APP Center
        * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
        @BIOS
        Ambient LED
        EasyTune
        Smart Backup
        System Information Viewer
      2. Support for Q-Flash
      3. Support for Xpress Install
    • Bundled Software
      1. Norton® Internet Security (OEM version)
      2. LAN bandwidth management software
    • Operating System
      1. Support for Windows 11 64-bit
      2. Support for Windows 10 64-bit
    • Form Factor
      1. Micro ATX Form Factor; 23.0cm x 21.5cm

    * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the
