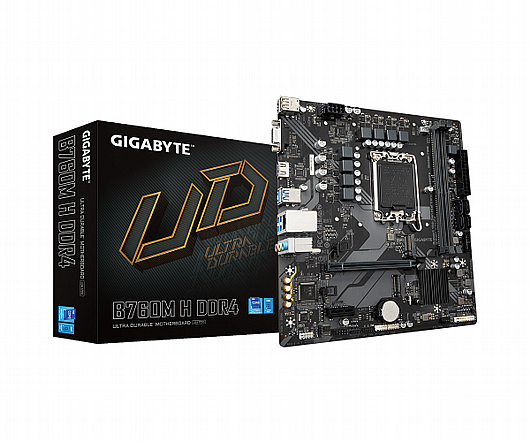

לוח אם Gigabyte B760M H DDR4

המוצר לא זמין לרכישה, לחץ כאן למוצרים דומים
Socket 1700
סוג זיכרון DDR4
עבור מעבדי דור 12 ו13 בלבד

<למידע נוסף

<למידע נוסף

  • מקט 1038871
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 40 ₪
    • איסוף עצמי- בתיאום מראש 0 ₪
    סגירה
  • יצרן  GIGABYTE
  • זמן אספקה עד5ימי עסקים
  • אחריות שלוש שנים
  • מספר תשלומים  36

מחיר   ₪ 497 ILS 9/7/2027 Out of stock GIGABYTE 1038871 1038871

  • +
  • -

טבלת תשלומים

      • CPU
        LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
        L3 cache varies with CPU
        (Please refer to "CPU Support List" for more information.)
      • Chipset
        Intel® B760 Express Chipset
      • Memory
        Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
        2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
        Dual channel memory architecture
        Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
        Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
        Support for Extreme Memory Profile (XMP) memory modules
        (Please refer "Memory Support List" for more information.)
      • Onboard Graphics
        Integrated Graphics Processor-Intel® HD Graphics support:
        - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
        - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

        * Support for HDMI 2.1 version and HDCP 2.3.
        ** Support native HDMI 2.1 TMDS compatible ports.


        (Graphics specifications may vary depending on CPU support.)
      • Audio
        Realtek® Audio CODEC
        High Definition Audio
        2/4/5.1/7.1-channel

        * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

        Support for S/PDIF Out
      • LAN
        Realtek® GbE LAN chip (1 Gbps/100 Mbps)
      • Expansion Slots
        CPU:
        - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
        Chipset:
        - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
      • Storage Interface
        CPU:
        - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
        Chipset:
        - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
        - 4 x SATA 6Gb/s connectors
        RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
      • USB
        Chipset:
        - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
        - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
      • Internal I/O Connectors
        1 x 24-pin ATX main power connector
        1 x 8-pin ATX 12V power connector
        1 x CPU fan header
        2 x system fan headers
        1 x RGB LED strip header
        2 x M.2 Socket 3 connectors
        4 x SATA 6Gb/s connectors
        1 x front panel header
        1 x front panel audio header
        1 x S/PDIF Out header
        1 x USB 3.2 Gen 1 header
        2 x USB 2.0/1.1 headers
        1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
        1 x serial port header
        1 x Clear CMOS jumper

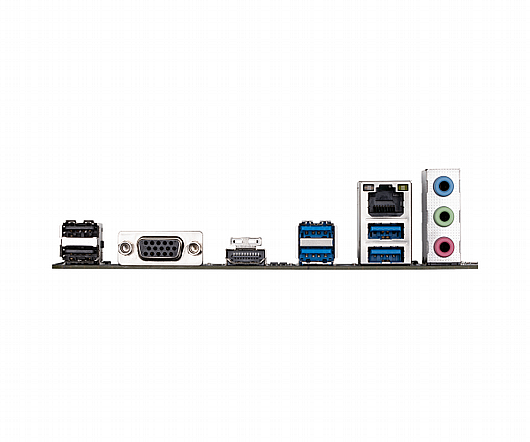

      • Back Panel Connectors
        2 x USB 2.0/1.1 ports
        1 x D-Sub port
        1 x HDMI port
        4 x USB 3.2 Gen 1 ports
        1 x RJ-45 port
        3 x audio jacks
      • I/O Controller
        iTE® I/O Controller Chip
      • H/W Monitoring
        Voltage detection
        Temperature detection
        Fan speed detection
        Water cooling flow rate detection
        Fan fail warning
        Fan speed control

        * Whether the fan speed control function is supported will depend on the cooler you install.

      • BIOS
        1 x 128 Mbit flash
        Use of licensed AMI UEFI BIOS
        PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
      • Unique Features
        Support for GIGABYTE Control Center (GCC)

        * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


        Support for Q-Flash
      • Bundled Software
        Norton® Internet Security (OEM version)
        LAN bandwidth management software
      • Operating System
        Support for Windows 11 64-bit
        Support for Windows 10 64-bit
      • Form Factor
        Micro ATX Form Factor; 23.0cm x 21.5cm
