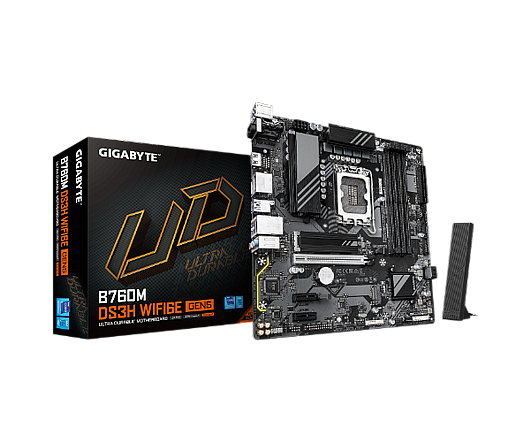

לוח אם Gigabyte B760M DS3H WF6E GEN5

Socket 1700
DDR5
עבור מעבדי דור 12 ו13 14בלבד

<למידע נוסף

<למידע נוסף

  • מקט 1045460
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי בחינם
    • משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 40 ₪
    סגירה
  • יצרן  GIGABYTE
  • זמן אספקה עד5ימי עסקים
  • אחריות שלוש שנים
  • מספר תשלומים  36

מחיר   ₪ 679 ILS 20/7/2027 In stock GIGABYTE

  • +
  • -
הוסף לסל

טבלת תשלומים

    • CPU
    • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
      (Go to GIGABYTE's website for the latest CPU support list.)
      L3 cache varies with CPU
    • Chipset
    • Intel® B760 Express Chipset
    • Memory
    • 14th and 13th Generation Intel® Core™ i9/i7 Processors:
      Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules
      13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
      Support for DDR5 4800/4400 MT/s memory modules
      4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
      Dual channel memory architecture
      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
      Support for Extreme Memory Profile (XMP) memory modules
      (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    • Onboard Graphics
    • Integrated Graphics Processor-Intel® HD Graphics support:
      - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support for native HDMI 2.1 TMDS compatible ports.


      - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3


      - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

      * Support for DisplayPort 1.2 version.


      (Graphics specifications may vary depending on CPU support.)
      Support for up to triple-display at the same time
    • Audio
    • Realtek® Audio CODEC
      High Definition Audio
      2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


      Support for S/PDIF Out
    • LAN
    • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    • Wireless Communication module
    • Intel® Wi-Fi 6E AX210
      - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
      - BLUETOOTH 5.3
      - Support for 11ax 160MHz wireless standard
      (Actual data rate may vary depending on environment and equipment.)
    • Expansion Slots
    • CPU:
      - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

      * The PCIEX16 slot can only support a graphics card or an NVMe SSD.


      Chipset:
      - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
    • Storage Interface
    • CPU:
      - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
      Chipset:
      - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
      - 4 x SATA 6Gb/s connectors
      RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    • USB
    • Chipset:
      - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
      - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
      - 2 x USB 2.0/1.1 ports on the back panel
      Chipset+USB 2.0 Hub:
      - 4 x USB 2.0/1.1 ports available through the internal USB headers
    • Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
      1 x 8-pin ATX 12V power connector
      1 x CPU fan header
      3 x system fan headers
      2 x addressable RGB Gen2 LED strip headers
      1 x RGB LED strip header
      2 x M.2 Socket 3 connectors
      4 x SATA 6Gb/s connectors
      1 x front panel header
      1 x front panel audio header
      1 x USB 3.2 Gen 1 header
      2 x USB 2.0/1.1 headers
      1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
      1 x S/PDIF Out header
      1 x Q-Flash Plus button
      1 x reset jumper
      1 x Clear CMOS jumper

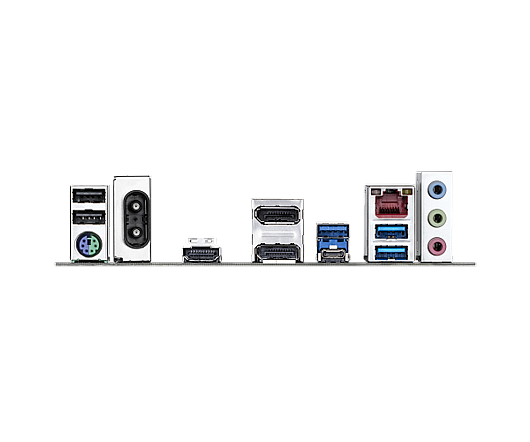

    • Back Panel Connectors
    • 2 x USB 2.0/1.1 ports
      1 x PS/2 keyboard/mouse port
      2 x antenna connectors (2T2R)
      1 x HDMI port (Note)
      2 x DisplayPorts (Note)
      3 x USB 3.2 Gen 1 ports
      1 x USB Type-C® port, with USB 3.2 Gen 2 support
      1 x RJ-45 port
      3 x audio jacks

      (Note) Actual support may vary by CPU.
    • I/O Controller
    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
      Temperature detection
      Fan speed detection
      Water cooling flow rate detection
      Fan fail warning
      Fan speed control

      * Whether the fan speed control function is supported will depend on the fan you install.

    • BIOS
    • 1 x 128 Mbit flash
      Use of licensed AMI UEFI BIOS
      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    • Unique Features
    • Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


      Support for Q-Flash
      Support for Q-Flash Plus
      Support for Smart Backup
    • Bundled Software
    • Norton® Internet Security (OEM version)
    • Operating System
    • Support for Windows 11 64-bit
      Support for Windows 10 64-bit
    • Form Factor
    • Micro ATX Form Factor; 24.4cm x 24.4cm

    * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
    * The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
    * Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
    * All trademarks and logos are the properties of their respective holders.
    * Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
