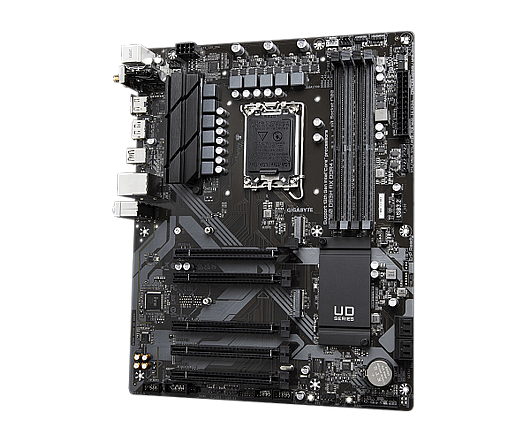

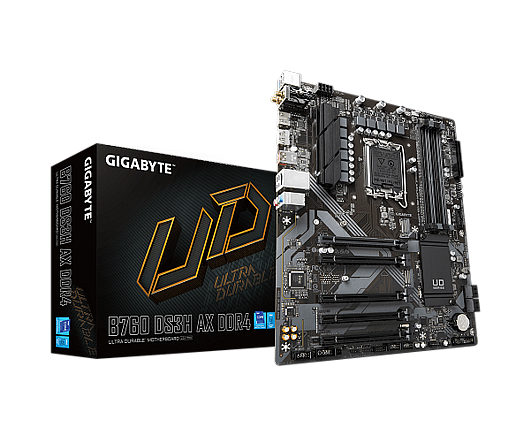

לוח אם Gigabyte B760 DS3H AX DDR4

המוצר לא זמין לרכישה, לחץ כאן למוצרים דומים

Socket 1700
עבור מעבדי דור 14 12 ו13 בלבד

<למידע נוסף

מקט 1041319
אפשרויות משלוח
אפשרויות משלוח למוצר לבחירה בקופה:

משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
משלוח עם שליח 2-5 ימי עסקים 40 ₪
איסוף עצמי- בתיאום מראש 0 ₪

סגירה
יצרן GIGABYTE
זמן אספקה עד5ימי עסקים
אחריות שלוש שנים
מספר תשלומים 36

מחיר ₪ 690 ILS 8/7/2027 Out of stock GIGABYTE

טבלת תשלומים

אני מסכים/ה לתנאים, ההגבלות, ל-מדיניות פרטיות ומאשר/ת יצירת קשר מאתר pccenter.co.il.

שתפו עם חברים וקבלו הנחה

מחיר לנותני לייק ₪688

(ההנחה תופיע בסל הקניות)

תיאור
מפרט טכני

- CPU
  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

  L3 cache varies with CPU

  (Please refer "CPU Support List" for more information.)
- Chipset
  Intel® B760 Express Chipset
- Memory
  Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules

  4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  Dual channel memory architecture

  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
- Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:

  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.

  1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3

  (Graphics specifications may vary depending on CPU support.)
- Audio
  Realtek® Audio CODEC

  High Definition Audio

  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  Support for S/PDIF Out
- LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps)
- Wireless Communication module
  AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)

  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  LUETOOTH 5.2

  Support for 11ax 80MHz wireless standard

  Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)

  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  BLUETOOTH 5.3

  Support for 11ax 160MHz wireless standard

  Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)

  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  BLUETOOTH 5.3

  Support for 11ax 160MHz wireless standard

  Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)

  WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  BLUETOOTH 5.3

  Support for 11ax 160MHz wireless standard

  (Actual data rate may vary depending on environment and equipment.)
- Expansion Slots
  CPU:

  1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset:

  4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
  (PCIEX1_1, PCIEX1_3~PCIEX1_5)
- Storage Interface
  CPU:

  1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

  Chipset:

  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  4 x SATA 6Gb/s connectors

  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- USB
  Chipset:

  1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

  1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

  1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  2 x USB 3.2 Gen 1 ports available through the internal USB header

  4 x USB 2.0/1.1 ports on the back panel

  Chipset+2 USB 2.0 Hubs:

  4 x USB 2.0/1.1 ports available through the internal USB headers
- Internal I/O Connectors
  1 x 24-pin ATX main power connector

  1 x 8-pin ATX 12V power connector

  1 x CPU fan header

  1 x CPU fan/water cooling pump header

  3 x system fan headers

  1 x system fan/water cooling pump header

  2 x addressable LED strip headers

  2 x RGB LED strip headers

  2 x M.2 Socket 3 connectors

  4 x SATA 6Gb/s connectors

  1 x front panel header

  1 x front panel audio header

  1 x S/PDIF Out header

  1 x USB Type-C® header, with USB 3.2 Gen 1 support

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  1 x serial port header

  1 x Q-Flash Plus button

  1 x reset button

  1 x reset jumper

  1 x Clear CMOS jumper

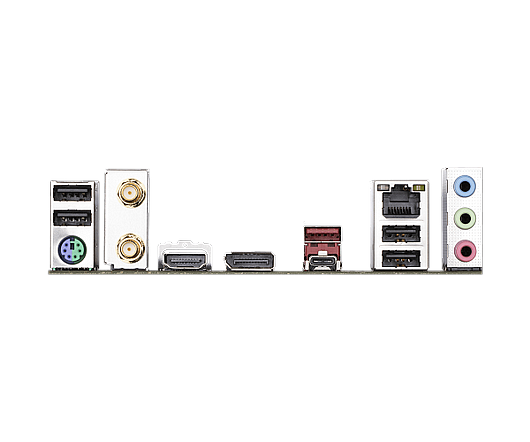

- Back Panel Connectors
  1 x PS/2 keyboard/mouse port

  2 x SMA antenna connectors (2T2R)

  1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

  1 x USB 3.2 Gen 2 Type-A port (red)

  4 x USB 2.0/1.1 ports

  1 x HDMI port

  1 x DisplayPort

  1 x RJ-45 port

  3 x audio jacks
- I/O Controller
  iTE® I/O Controller Chip
- H/W Monitoring
  Voltage detection

  Temperature detection

  Fan speed detection

  Water cooling flow rate detection

  Fan fail warning

  Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
- BIOS
  1 x 128 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
  Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

  Support for Q-Flash

  Support for Q-Flash Plus
- Bundled Software
  Norton® Internet Security (OEM version)

  LAN bandwidth management software
- Operating System
  Support for Windows 11 64-bit

  Support for Windows 10 64-bit
- Form Factor
  ATX Form Factor; 30.5cm x 24.4cm
