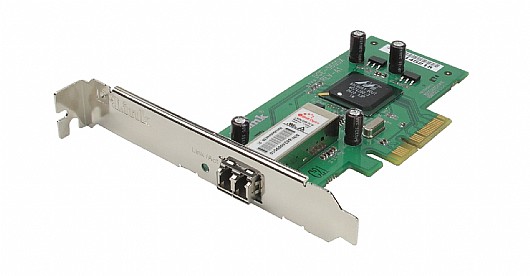

כרטיס רשת ג'יגהביט אופטי PCI Express DGE-560SX DGE-560SX

Standards
• IEEE 802.3z 1000BASE-SX Gigabit Ethernet
• 802.3x Flow Control
• Interface PCI-E 2.0 5 GHz

Jack
• Optic connector LC, 850 nm

Installed PCI slot
• PCI Express x1/x4/x8/x16

Network cables and transmission distance
• 62,5 / 125 micron multimode optical fiber cable (up to 275 m)
• 50/125 micron multimode optical fiber cable (up to 550 m)

Networking mode
• Full Duplex (2000 Mbit / s)

Data transfer rate
• 1 Gbit / s

Supported Features
• Support for Jumbo-frames 9 KB
• Supports 802.1p QoS priority queues
• Security VLAN 802.1Q, 64 groups
• Power Management ACPI 2.0
• Statistics for SNMP
• Card Teaming
• Remote Boot

Supported Drivers
• Microsoft Windows 7 32/64-bit
• Microsoft Windows Server 2008 32/64-bit
• Microsoft Windows Vista 32/64-bit
• Microsoft Windows 2003 Server 32/64-bit
• Microsoft Windows XP 32/64-bit
• Linux Kernel 2.4x, 2.6x
• NDIS2 for DOS
• Netware server 4.x, 5.x, 6.x
• ODI client Netware DOS

LEDs
• Link / Activity

Measurements
• 68,5 x 68,9 mm

Required voltage
• 3.3

Temperature
• Operating: 0 to 50 C
• Storage: -20 to 70 C

Humidity
• From 5% to 90% non-condensing

Certificates
• CE
• FCC Class B
• VCCI
• BSMI
• C-Tick
