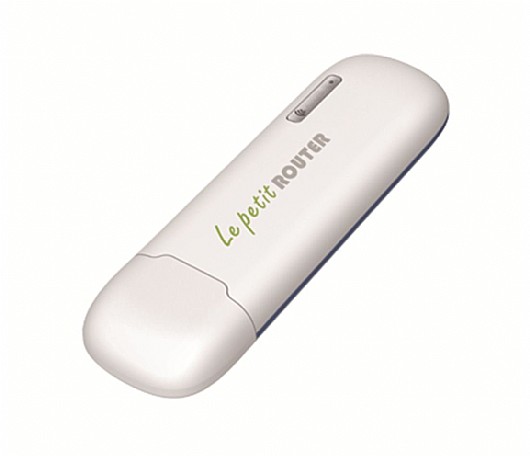

כרטיס רשת D-LINK DWR-710 USB

GSM/GPRS/EDGE Band
• 900/1800 MHz or 850/900/1800/1900 MHz
• Power Class 4 (850/900 MHz)
• Power Class 1 (1800/1900 MHz)

UMTS/HSDPA/HSUPA/HSPA+* Band
• 2100 MHz or 850/900/1900/2100 MHz
• Power Class 3 (+24 dBm)

System Requirements
• Minimum: Windows XP/Vista/7/8, Mac OS X 10.5 or higher
• 128 MB RAM or greater
• 50 MB available disk space

Data Throughput**
• 3G Downlink: Up to 21 Mbps
• 3G Uplink: Up to 11.4 Mbps

Security
• Built-in firewall
• WEP/WPA/WPA2

Standards
• 802.11 b/g/n

Web GUI
• Internet Connection Setup Wizard
• Connection Monitor
• MAC Address Filter
• Network Settings Manager
• SMS Manager
  - Compose/Send/Read/Delete SMS
• Firmware Upgrades

 Interfaces
• 6-pin USIM card interface
• microSD card interface
• USB 2.0

Antenna
• Internal 3G main antenna
• Internal 3G diversity antenna
• Internal Wi-Fi antenna

Output Power
• 6 dBm to 15 dBm

USIM Slot
• Standard 6-Pin SIM card interface

SMS
• Circuit-switched (GSM)

Plug-and-Play
• Automatic software/driver installation

LED Status Indicators
• Signal LED
  - Green: connection
  - Red: SIM error/No service
• Wi-Fi LED
  - Green: Wi-Fi active

Dimensions
• 91.5 x 27 x 11 mm

Weight
• 25 grams

Temperature
• Operating: 0° to 40°C

Certifications
• CE
• FCC
• Wi-Fi Certified
