כרטיס רשת 10/100 למחשב נייד PCMCIA-LAN

כרטיס רשת 10/100 למחשב נייד PCMCIA-LAN

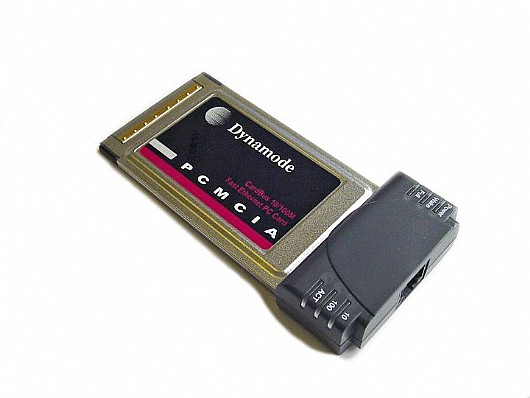

The Dynamode LFE2000 is a feature rich CardBus 32-bit adapter which allows connection to a 10/100Mbps Ethernet LAN. Advanced features like Full and Half Duplex flow control, auto speed adaption together with an advanced ASIC chipset design to reduce power consumption and allow full Plug n Play with the most popular Operating Systems.

Comes complete with RJ45 adapter plug.

FEATURES

• Complies with PCMCIA CardBus standard.
• Provides 32-bit bus-mastering data transfer rate.
• Supports 10/100Mbps speed auto-negotiation.
• Supports full duplex mode ?V double network data rate to 20/200 Mbps.
• Provides 3 diagnostic LED indicators: LINK10, LINK100, ACT.
• Supports all major Network Operating Systems (NOS).
• Includes LAN diagnostic program.
• Supports PC Card hot swappable.
• Provides ultra-low power consumption.
• Supports innovative power-down mode.

  SPECIFICATION


  Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseTX PC Card Standard
  Network Media	Port: Single RJ-45 phone jack Cable type: - UTP Category 3,5 Cable for 10BaseT - UTP Category 5 Cable for 100BaseTX
  Card & Socket Service Support	PC Card Standard, Windows NT 4.x direct enabler DOS direct enabler
  Driver Support	Windows NT 4.x, Windows 95 (OSR2.x)/ 98/ 98SE / ME / 2000 / XP ; Linux OS, FTP PC/TCP, Packet Driver, DOS ODI client.
  Environment	Temperature: - Operation: 32° to 140°F (0° to 60°C) - Storage: 68° to 158°F (20° to 70°C) Humidity: 10% to 95%, non-condensing.
  Power Consumption (Normal Operation)	10M: + 3.3V DC, 153mA Max. 100M: + 3.3V DC, 105mA Max.
  Diagnostic LEDs	Link10: Green (ON) / Link100: Green (ON) / Act: Orange (Blink)
  Physical Specification	Dimension: 108(L) x 54(W)x11.8 (H) mm Weight: 35 g
  EMC Certification	FCC Part 15 Class B CE (EN55022 / N55024 Class B) VCCI Class B
