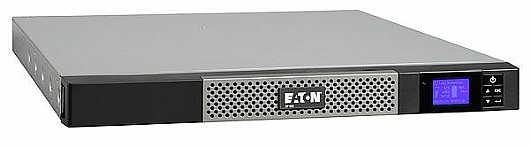

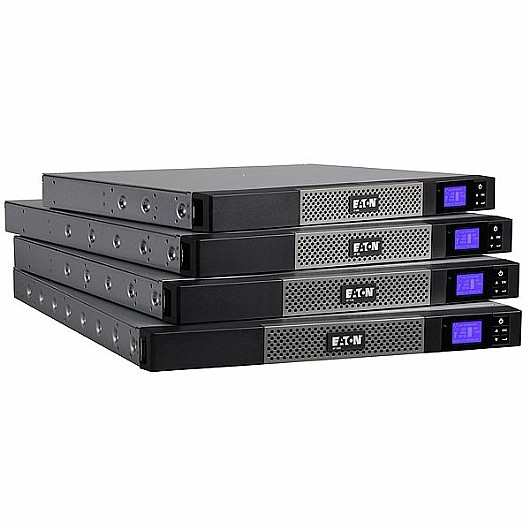

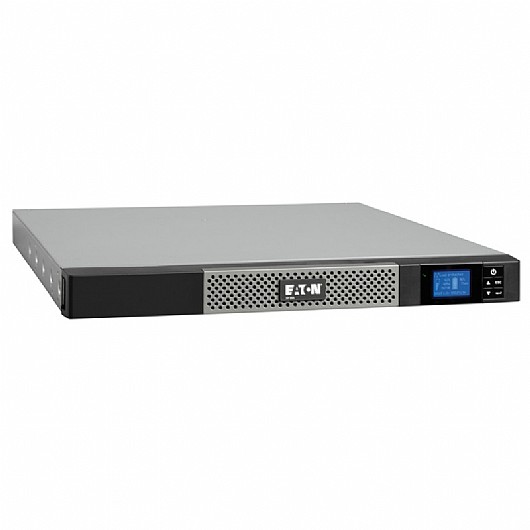

מחיר ₪ 3,239 ILS 7/7/2027 Out of stock https://www.pccenter.co.il/product/אל-פסק-eaton-5p1550ir-1u Eaton 1013673 1013673
| General | |||
| Topology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) | ||
| Configuration | Rack 1U | ||
| Part Number | 5P1550iR | ||
| Rating (VA/Watts) | 1550/1100 | ||
| Dimensions (H x W x D, mm) | 43.2 x 438 x 554 | ||
| Weight (kg) | 19.4 | ||
| Warranty | 3 years on electronics, 2 years on batteries | ||
| Electrical Input | |||
| Connection |
(1) IEC-320-C14
 |
||
| Input Voltage Without Using Batteries | 160V-294V (adjustable to 150V-294V) | ||
| Input frequency Range Without Using Batteries | 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode | ||
| Electrical Output | |||
| Voltages | 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V) | ||
| Output Receptacles |
(6) IEC-320-C13
 |
||
| Remotely controlled sockets | 2 groups of 2 x IEC C13 (10 A) | ||
| Output Frequency | 50/60 Hz +/- 0.1 % (autosensing) | ||
| Battery | |||
|
Runtime
(Minutes) 200
400
600
800
1000
0
10
20
30
40
50
60
70
80
90
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
Mouseover graph for detailed runtime values
|
|||
| Battery Management | ABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection | ||
| Communications | |||
| Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off | ||
| Communications Card Slots | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards | ||
| Environmental & Standards | |||
| Audible Noise | < 40 dBA | ||
| Operating Temperature | 0 to 40°C | ||
| Safety markings | IEC/EN 62040-1, UL 1778 | ||
| EMC Markings | IEC/EN 62040-2, IEC/EN 62040-3 (performance) | ||
| Approvals | CE, CB report, TÜV | ||
