אל פסק APC Smart-UPS SRT5KXLI

המוצר לא זמין לרכישה, לחץ כאן למוצרים דומים

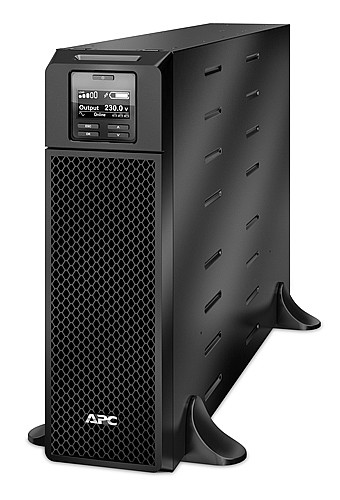

APC Smart-UPS SRT5KXLI
אל פסק מבית APC בעל הספק 5000VA

<למידע נוסף

<למידע נוסף

  • מקט 1011075
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • איסוף עצמי- בתיאום מראש 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 0 ₪
    סגירה
  • יצרן  APC
  • זמן אספקה עד5ימי עסקים
  • אחריות 3 שנים אחריות (שנתיים על סוללות)באתר הלקוח
  • מספר תשלומים  36

מחיר   ₪ 11,677 ILS 10/7/2027 Out of stock APC SURT1000XLI SURT1000XLI

  • +
  • -

טבלת תשלומים

Output

Output Power Capacity
4500 Watts / 5000 VA
Max Configurable Power
4500 Watts / 5000 VA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 2%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave

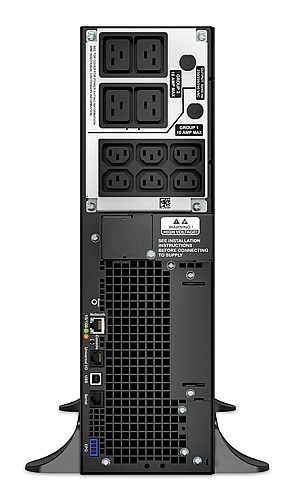

Output Connections
(6) IEC 320 C13 IEC 320 C13
(4) IEC 320 C19 IEC 320 C19
(2) IEC Jumpers
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
230V
Input Frequency
40 - 70 Hz (auto sensing)
Input Connections
Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations
160 - 275V
Other Input Voltages
220, 240

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
2
Typical recharge time
1.50 hour(s)
Replacement Battery
APCRBC140
RBC™ Quantity
1
Extended Run Options
APC Smart-UPS SRT 5000VA 230V
Runtime Graph
Curve Part Number(s)
A SRT5KXLI
B SRT5KXLI
+ (1)SRT192BP
C SRT5KXLI
+ (2)SRT192BP
D SRT5KXLI
+ (3)SRT192BP
E SRT5KXLI
+ (4)SRT192BP

Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Energy Use/Efficiency

Load Efficiency
25% 92.1%
50% 94.1%
75% 94.4%
100% 94.3%

Hover over the line on the graph above to view the efficiency at any desired load
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management

Interface Port(s)
Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Available SmartSlot™ Interface Quantity
1
Control panel
Multi-function LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes

Surge Protection and Filtering

Surge energy rating
480 Joules

Physical

Maximum Height
432.00 mm
Maximum Width
130.00 mm
Maximum Depth
719.00 mm
Net Weight
54.43 KG
Shipping Weight
63.60 KG
Shipping Height
330.00 mm
Shipping Width
610.00 mm
Shipping Depth
960.00 mm
Color
Black
Units per Pallet
6.00

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95% no%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95% no%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
55.00 dBA
Online Thermal Dissipation
931.00 BTU/hr
Protection Class
IP 20
